車削型針狀軸承、付內輪

車削型滾針軸承是端面高度小，額定負荷大的軸承，外圈具有穩定的剛性，即便是輕型合金等的軸承座也可方便的使用。有公制系列和英制系列，兩種系列又都有附帶保持架的型號和滿滾子型號，可選擇與重負荷，高速及低速旋轉等各種條件相適宜的軸承。

此外又分別有無內圈軸承和附帶內圈軸承，無內圈軸承如果將軸作為軌道面使用，則可進行緊湊化設計。

無內圈軸承

附帶內圈軸承

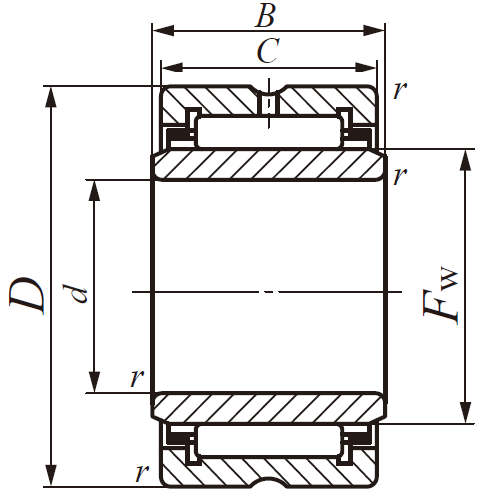

車削型滾針軸承的結構

RNA49 無內圈

NA49 帶內圈

RNA49...UU 兩側密封型

GTR 帶止動環

車削型針狀軸承無內圈

RNA49,TAF,TR

RNA69

GTR

軸徑 m/m	公稱型號						重量 g	主要尺寸 (m/m)				安裝尺寸 Da 最大 m/m	基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
軸徑 m/m	RNA 49	RNA 69	RNA 48	TAF	TR	GTR	重量 g	Fw	D	C	rs min	安裝尺寸 Da 最大 m/m	基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
5	-	-	-	TAF 51010	-	-	3.4	5	10	10	0.2	8.4	2420	1950	80000
5	-	-	-	TAF 51012	-	-	4.2	5	10	12	0.2	8.4	3080	2660	80000
5	RNA 493	-	-	-	-	-	4.6	5	11	10	0.15	9.8	2420	1950	80000
6	RNA 494	-	-	-	-	-	5.3	6	12	10	0.15	10.8	2700	2320	70000
6	-	-	-	TAF 61212	-	-	6.4	6	12	12	0.2	10.4	3440	3170	70000
7	RNA 495	-	-	-	-	-	5.9	7	13	10	0.15	11.8	2960	2690	60000
7	-	-	-	TAF 71410	-	-	6.9	7	14	10	0.2	12.4	3600	2960	60000
7	-	-	-	TAF 71412	-	-	8.3	7	14	12	0.2	12.4	4610	4050	60000
8	RNA 496	-	-	-	-	-	7.4	8	15	10	0.15	13.8	3960	3420	50000
8	-	-	-	TAF 81512	-	-	9.1	8	15	12	0.2	13.4	5060	4690	50000
8	-	-	-	TAF 81516	-	-	12.9	8	15	16	0.2	13.4	7080	7220	50000
9	-	-	-	TAF 91612	-	-	9.8	9	16	12	0.2	14.4	5490	5330	45000
9	-	-	-	TAF 91616	-	-	13.2	9	16	16	0.2	14.4	7680	8210	45000
9	RNA 497	-	-	-	-	-	9.3	9	17	10	0.15	15.8	4530	3650	45000
10	-	-	-	TAF 101712	-	-	10.7	10	17	12	0.2	15.4	5880	5970	40000
10	-	-	-	TAF 101716	-	-	14.3	10	17	16	0.2	15.4	8230	9190	40000
10	RNA 498	-	-	-	-	-	12.6	10	19	11	0.2	17.4	6180	5030	40000
12	-	-	-	TAF 121912	-	-	12.2	12	19	12	0.3	17	6610	7260	35000
12	-	-	-	TAF 121916	-	-	16.3	12	19	16	0.3	17	9250	11200	35000
12	RNA 499	-	-	-	-	-	13.6	12	20	11	0.3	18	6600	6310	35000
14	RNA 4900	-	-	-	-	-	16.5	14	22	13	0.3	20	9230	10100	30000
14	-	-	-	TAF 142216	-	-	21	14	22	16	0.3	20	11700	13700	30000
14	-	-	-	TAF 142220	-	-	26.5	14	22	20	0.3	20	14800	18600	30000
15	-	-	-	TAF 152316	-	-	22.5	15	23	16	0.3	21	12300	14900	30000
15	-		-	TAF 152320	-	-	28	15	23	20	0.3	21	15600	20200	30000
16	RNA 4901	-	-	-	-	-	18.1	16	24	13	0.3	22	9660	11100	25000
16	-	-	-	TAF 162416	-	-	23	16	24	16	0.3	22	12300	15100	25000
16	-	-	-	TAF 162420	-	-	29	16	24	20	0.3	22	15500	20400	25000
16	-	RNA 6901	-	-	-	-	30	16	24	22	0.3	22	17100	23000	25000
17	-	-	-	TAF 172516	-	-	24.5	17	25	16	0.3	23	12900	16300	25000
17	-	-	-	TAF 172520	-	-	30.5	17	25	20	0.3	23	16300	22000	25000
18	RNA 49/14	-	-	-	-	-	19.9	18	26	13	0.3	24	10600	12800	20000
18	-	-	-	TAF 182616	-	-	25.5	18	26	16	0.3	24	13400	17500	20000
18	-	-	-	TAF 182620	-	-	32	18	26	20	0.3	24	17000	23600	20000
19	-	-	-	TAF 192716	-	-	27	19	27	16	0.3	25	14000	18700	20000
19	-	-	-	TAF 192720	-	-	34	19	27	20	0.3	25	17700	25300	20000
20	RNA 4902	-	-	-	-	-	21.5	20	28	13	0.3	26	10900	13800	20000
20	-	-	-	TAF 202816	-	-	27.5	20	28	16	0.3	26	13900	18800	20000
20	-	-	-	TAF 202820	-	-	35.5	20	28	20	0.3	26	17600	25400	20000
20	-	RNA 6902	-	-	-	-	37	20	28	23	0.3	26	19300	28800	20000
20	-	-	-	-	TR 203320	-	59.5	20	33	20	0.3	31	24300	26500	20000
20	-	-	-	-	-	GTR 203320	69	20	33	20	0.3	31	29200	37200	7500
21	-	-	-	TAF 212916	-	-	29	21	29	16	0.3	27	14400	20000	19000
21	-	-	-	TAF 212920	-	-	36	21	29	20	0.3	27	18200	27100	19000
22	RNA 4903	-	-	-	-	-	23.5	22	30	13	0.3	28	11700	15600	18000
22	-	-	-	TAF 223016	-	-	30	22	30	16	0.3	28	14900	21200	18000
22	-	-	-	TAF 223020	-	-	37.5	22	30	20	0.3	28	18900	28700	18000
22	-	RNA 6903	-	-	-	-	40.5	22	30	23	0.3	28	20800	32500	18000
22	-	-	-	-	TR 223425	-	73.5	22	34	25	0.3	32	29100	36800	18000
22	-	-	-	-	-	GTR 223425	87	22	34	25	0.3	32	37900	57800	7000
24	-	-	-	TAF 243216	-	-	32	24	32	16	0.3	30	15300	22500	17000
24	-	-	-	TAF 243220	-	-	40.5	24	32	20	0.3	30	19400	30500	17000
25	-	-	-	TAF 253316	-	-	33.5	25	33	16	0.3	31	15800	23700	16000
25	-	-	-	TAF 253320	-	-	42	25	33	20	0.3	31	20000	32100	16000
25	RNA 4904	-	-	-	-	-	55.5	25	37	17	0.3	35	21000	25000	16000
25	-	RNA 6904	-	-	-	-	95.5	25	37	30	0.3	35	35400	48900	16000
25	-	-	-	-	TR 253820	-	71	25	38	20	0.3	36	28900	35000	16000
25	-	-	-	-	TR 253825	-	89	25	38	25	0.3	36	34800	44400	16000
25	-	-	-	-	-	GTR 253820	81.5	25	38	20	0.3	36	33300	46500	6000
25	-	-	-	-	-	GTR 253825	104	25	38	25	0.3	36	42400	63700	6000
26	-	-	-	TAF 263416	-	-	34.5	26	34	16	0.3	32	16300	24900	15000
26	-	-	-	TAF 263420	-	-	43.5	26	34	20	0.3	32	20600	33800	15000
28	-	-	-	TAF 283720	-	-	51.5	28	37	20	0.3	35	21700	37100	14000
28	-	-	-	TAF 283730	-	-	83.5	28	37	30	0.3	35	31100	58900	14000
28	RNA 49/22	-	-	-	-	-	56.5	28	39	17	0.3	37	21400	28900	14000
28	-	RNA 69/22	-	-	-	-	97.5	28	39	30	0.3	37	36300	56900	14000
29	-	-	-	TAF 293820	-	-	57	29	38	20	0.3	36	21600	37200	14000
29	-	-	-	TAF 293830	-	-	85	29	38	30	0.3	36	30900	59100	14000
30	-	-	-	TAF 304020	-	-	64.5	30	40	20	0.3	38	25100	40100	13000
30	-	-	-	TAF 304030	-	-	97.5	30	40	30	0.3	38	36000	63900	13000
30	RNA 4905	-	-	-	-	-	64	30	42	17	0.3	40	23700	30700	13000
30	-	RNA 6905	-	-	-	-	111	30	42	30	0.3	40	42100	64300	13000
30	-	-	-	-	TR 304425	-	115	30	44	25	0.3	42	37900	52100	13000
30	-	-	-	-	-	GTR 304425	133	30	44	25	0.3	42	47000	76500	5000
32	-	-	-	TAF 324220	-	-	68	32	42	20	0.3	40	25700	42200	12000
32	-	-	-	TAF 324230	-	-	102	32	42	30	0.3	40	36800	67200	12000
32	RNA 49/28	-	-	-	-	-	76.5	32	45	17	0.3	43	24500	32700	12000
32	-	RNA 69/28	-	-	-	-	133	32	45	30	0.3	43	41800	64800	12000
32	-	-	-	-	-	GTR 324530	152	32	45	30	0.3	43	58000	101000	4500
35	-	-	-	TAF 354520	-	-	73.5	35	45	20	0.3	43	26900	46200	11000
35	-	-	-	TAF 354530	-	-	112	35	45	30	0.3	43	38600	73600	11000
35	RNA 4906	-	-	-	-	-	72.5	35	47	17	0.3	45	25200	34700	11000
35	-	RNA 6906	-	-	-	-	125	35	47	30	0.3	45	43000	69000	11000
35	-	-	-	-	TR 354830	-	139	35	48	30	0.3	46	47400	72300	11000
35	-	-	-	-	-	GTR 354830	163	35	48	30	0.3	46	61100	110000	4500
37	-	-	-	TAF 374720	-	-	77.5	37	47	20	0.3	45	28200	50100	11000
37	-	-	-	TAF 374730	-	-	117	37	47	30	0.3	45	40500	79800	11000
38	-	-	-	TAF384820	-	-	79	38	48	20	0.3	46	28100	50200	11000
38	-	-	-	TAF 384830	-	-	119	38	48	30	0.3	46	40300	80000	11000
38	-	-	-	-	TR 385230	-	168	38	52	30	0.6	48	50800	81100	11000
38	-	-	-	-	-	GTR 385230	195	38	52	30	0.6	48	64200	12100	4000
40	-	-	-	TAF 405020	-	-	83	40	50	20	0.3	48	29400	54100	10000
40	-	-	-	TAF 405030	-	-	125	40	50	30	0.3	48	42300	86200	10000
40	RNA 49/32	-	-	-	-	-	96	40	52	20	0.6	48	31200	47800	10000
40	-	RNA 69/32	-	-	-	-	172	40	52	36	0.6	48	53500	95700	10000
40	-	-	-	-	TR 405520	-	129	40	55	20	0.6	51	37400	55700	10000
40	-	-	-	-	-	GTR 405520	144	40	55	20	0.6	51	44300	73600	3500
42	-	-	-	TAF 425220	-	-	86.5	42	52	20	0.3	50	29900	56200	9500
42	-	-	-	TAF 425230	-	-	130	42	52	30	0.3	50	43000	89400	9500
42	RNA 4907	-	-	-	-	-	113	42	55	20	0.6	51	32000	50100	9500
42	-	RNA 6907	-	-	-	-	200	42	55	36	0.6	51	54900	100000	9500
42	-	-	-	-	TR 425630	-	183	42	56	30	0.6	52	53800	90100	9500
42	-	-	-	-	-	GTR 425630	210	42	56	30	0.6	52	67500	133000	3500
43	-	-	-	TAF 435320	-	-	88.5	43	53	20	0.3	51	30500	58200	9500
43	-	-	-	TAF 435330	-	-	133	43	53	30	0.3	51	43800	92600	9500
45	-	-	-	TAF 455520	-	-	92	45	55	20	0.3	53	31000	60200	9000
45	-	-	-	TAF 455530	-	-	138	45	55	30	0.3	53	44600	95800	9000
45	RNA 49/38	-	-	-	-	-	120	45	58	20	0.6	54	33600	54600	9000
45	-	-	-	-	TR 455930	-	193	45	59	30	0.6	55	55100	94800	9000
45	-	-	-	-	-	GTR 455930	225	45	59	30	0.6	55	70300	142000	3500
47	-	-	-	TAF 475720	-	-	95	47	57	20	0.3	55	31500	62200	8500
47	-	-	-	TAF 475730	-	-	144	47	57	30	0.3	55	45200	99100	8500
48	RNA 4908	-	-	-	-	-	152	48	62	22	0.6	58	41600	67400	8500
48	-	-	-	-	TR 486230	-	205	48	62	30	0.6	58	56300	99500	8500
48	-	RNA 6908	-	-	-	-	275	48	62	40	0.6	58	71300	135000	8500
48	-	-	-	-	-	GTR 486230	240	48	62	30	0.6	58	72700	154000	3000
50	-	-	-	TAF 506225	-	-	159	50	62	25	0.3	60	43000	85300	8000
50	-	-	-	TAF 506235	-	-	225	50	62	35	0.3	60	58000	125000	8000
50	-	-	-	-	TR 506430	-	210	50	64	30	0.6	60	57700	104000	8000
50	RNA 49/42	-	-	-	-	-	174	50	65	22	0.6	61	42500	70300	8000
50	-	-	-	-	-	GTR 506430	245	50	64	30	0.6	60	74600	158000	3000
52	RNA 4909	-	-	-	-	-	197	52	68	22	0.6	64	43500	73300	7500
52	-	RNA 6909	-	-	-	-	355	52	68	40	0.6	64	74600	147000	7500
55	-	-	-	TAF 556825	-	-	193	55	68	25	0.3	66	45400	94000	7500
55	-	-	-	TAF 556835	-	-	255	55	68	35	0.3	66	61200	138000	7500
55	RNA 49/48	-	-	-	-	-	188	55	70	22	0.6	66	44300	76300	7500
58	RNA 4910	-	-	-	-	-	179	58	72	22	0.6	68	46200	82100	7000
58	-	RNA 6910	-	-	-	-	320	58	72	40	0.6	68	79200	164000	7000
58	-	-	-	-	TR 587745	-	515	58	77	45	1	72	104000	191000	7000
58	-	-	-	-	-	GTR 587745	590	58	77	45	1	72	135000	280000	2500
60	-	-	-	TAF 607225	-	-	187	60	72	25	0.3	70	47500	103000	6500
60	-	-	-	TAF 607235	-	-	260	60	72	35	0.3	70	64100	151000	6500
60	RNA 49/52	-	-	-	-	-	205	60	75	22	0.6	71	47100	85100	6500
62	-	-	-	-	TR 628138	-	460	62	81	38	1	76	92000	166000	6500
62	-	-	-	-	-	GTR 628138	520	62	81	38	1	76	118000	241000	2500
63	RNA 4911	-	-	-	-	-	265	63	80	25	1	75	57600	97200	6500
63	-	RNA 6911	-	-	-	-	475	63	80	45	1	75	98700	194000	6500
65	-	-	-	TAF 657825	-	-	225	65	78	25	0.6	74	49600	112000	6000
65	-	-	-	TAF 657835	-	-	315	65	78	35	0.6	74	67000	164000	6000
65	RNA 49/58	-	-	-	-	-	275	65	82	25	1	77	58900	101000	6000
68	-	-	-	TAF 688225	-	-	250	68	82	25	0.6	78	54800	117000	6000
68	-	-	-	TAF 688235	-	-	350	68	82	35	0.6	78	72000	166000	6000
68	RNA 4912	-	-	-	-	-	285	68	85	25	1	80	60200	105000	6000
68	-	RNA 6912	-	-	-	-	510	68	85	45	1	80	103000	211000	6000
70	-	-	-	TAF 708525	-	-	280	70	85	25	0.6	81	55500	120000	5500
70	-	-	-	TAF 708535	-	-	395	70	85	35	0.6	81	73000	171000	5500
70	RNA 49/62	-	-	-	-	-	320	70	88	25	1	83	61500	109000	5500
70	-	-	-	-	TR 708945	-	605	70	89	45	1	84	114000	228000	5500
70	-	-	-	-	-	GTR 708945	690	70	89	45	1	84	147000	336000	2000
72	RNA 4913	-	-	-	-	-	325	72	90	25	1	85	62700	113000	5500
72	-	RNA 6913	-	-	-	-	585	72	90	45	1	85	108000	227000	5500
73	-	-	-	TAF 739025	-	-	335	73	90	25	1	85	61100	127000	5500
73	-	-	-	TAF 739035	-	-	475	73	90	35	1	85	80400	181000	5500
75	-	-	-	TAF 759225	-	-	345	75	92	25	1	87	62100	131000	5500
75	-	-	-	TAF 759235	-	-	485	75	92	35	1	87	81700	186000	5500
75	RNA 49/68	-	-	-	-	-	470	75	95	30	1	90	79900	147000	5500
80	-	-	-	TAF 809525	-	-	315	80	95	25	1	90	59400	137000	5000
80	-	-	-	TAF 809535	-	-	445	80	95	35	1	90	78100	195000	5000
80	RNA 4914	-	-	-	-	-	495	80	100	30	1	95	83200	158000	5000
80	-	RNA 6914	-	-	-	-	910	80	100	54	1	95	134000	311000	5000
83	-	-	-	-	TR 8310845	-	995	83	108	45	1	103	146000	270000	5000
83	-	-	-	-	-	GTR 8310845	1090	83	108	45	1	103	190000	396000	1800
85	-	-	-	TAF 8510525	-	-	435	85	105	25	1	100	76300	145000	4500
85	RNA 4915	-	-	-	-	-	525	85	105	30	1	100	86200	169000	4500
85	-	-	-	TAF 8510535	-	-	610	85	105	35	1	100	102000	210000	4500
85	-	RNA 6915	-	-	-	-	960	85	105	54	1	100	138000	331000	4500
90	-	-	-	TAF 9011025	-	-	455	90	110	25	1	105	77300	150000	4500
90	RNA 4916	-	-	-	-	-	550	90	110	30	1	105	87300	175000	4500
90	-	-	-	TAF 9011035	-	-	640	90	110	35	1	105	103000	217000	4500
90	-	RNA 6916	-	-	-	-	1010	90	110	54	1	105	143000	351000	4500
93	-	-	-	-	TR 9311850	-	1210	93	118	50	1	113	165000	329000	4500
93	-	-	-	-	-	GTR 9311850	1340	93	118	50	1	113	224000	509000	1600
95	-	-	-	TAF 9511526	-	-	495	95	115	26	1	110	79700	159000	4000
95	RNA 49/82	-	-	-	-	-	575	95	115	30	1	110	90000	186000	4000
95	-	-	-	TAF 9511536	-	-	690	95	115	36	1	110	106000	231000	4000
95	-	-	-	-	TR 9512045	-	1120	95	120	45	1.5	112	155000	305000	4000
95	-	-	-	-	-	GTR 9512045	1230	95	120	45	1.5	112	204000	455000	1600
100	-	-	-	TAF 10012026	-	-	525	100	120	26	1	115	82400	168000	4000
100	RNA 4917	-	-	-	-	-	705	100	120	35	1.1	113.5	110000	244000	4000
100	-	-	-	TAF 10012036	-	-	725	100	120	36	1	115	110000	244000	4000
100	-	RNA 6917	-	-	-	-	1300	100	120	63	1.1	113.5	173000	467000	4000
100	-	-	-	-	TR 10012550	-	1290	100	125	50	1.5	117	172000	355000	4000
100	-	-	-	-	-	GTR 10012550	1440	100	125	50	1.5	117	234000	549000	1500
105	-	-	-	TAF 10512526	-	-	545	105	125	26	1	120	84700	178000	4000
105	RNA 4918	-	-	-	-	-	740	105	125	35	1.1	118.5	113000	258000	4000
105	-	-	-	TAF 10512536	-	-	760	105	125	36	1	120	113000	258000	4000
105	-	RNA 6918	-	-	-	-	1360	105	125	63	1.1	118.5	178000	490000	4000
110	-	-	-	TAF 11013030	-	-	660	110	130	30	1	125	106000	240000	3500
110	RNA 4919	-	-	-	-	-	770	110	130	35	1.1	123.5	116000	271000	3500
110	-	-	-	TAF 11013040	-	-	880	110	130	40	1	125	134000	324000	3500
110	-	RNA 6919	-	-	-	-	1420	110	130	63	1.1	123.5	182000	514000	3500
110	-	-	-	-	TR 11013550	-	1400	110	135	50	1.5	127	183000	395000	3500
110	-	-	-	-	-	GTR 11013550	1560	110	135	50	1.5	127	245000	603000	1400
115	RNA 4920	-	-	-	-	-	1190	115	140	40	1.1	133.5	145000	329000	3500
115	-	-	-	-	TR 11515350	-	2350	115	153	50	1.5	145	233000	414000	3500
115	-	-	-	-	-	GTR 11515350	2600	115	153	50	1.5	145	315000	614000	1300
120	-	-	RNA 4822	-	-	-	790	120	140	30	1	135	93200	239000	3500
125	RNA 4922	-	-	-	-	-	1280	125	150	40	1.1	143.5	152000	357000	3000
130	-	-	RNA 4824	-	-	-	850	130	150	30	1	145	96900	259000	3000
135	RNA 4924	-	-	-	-	-	1930	135	165	45	1.1	158.5	187000	435000	3000
140	-	-	-	-	TR 14017860	-	3320	140	178	60	1.5	170	307000	625000	3000
140	-	-	-	-	-	GTR 14017860	3730	140	178	60	1.5	170	409000	923000	1100
145	-	-	RNA 4826	-	-	-	1100	145	165	35	1.1	158.5	116000	340000	3000
150	RNA 4926	-	-	-	-	-	2360	150	180	50	1.5	172	215000	540000	2500
150	-	-	-	-	TR 15018860	-	3540	150	188	60	1.5	180	320000	675000	2500
150	-	-	-	-	-	GTR 15018860	3970	150	188	60	1.5	180	423000	989000	1000
155	-	-	RNA 4828	-	-	-	1170	155	175	35	1.1	168.5	120000	363000	2500
160	RNA 4928	-	-	-	-	-	2500	160	190	50	1.5	182	224000	580000	2500
165	-	-	RNA 4830	-	-	-	1750	165	190	40	1.1	183.5	168000	446000	2500
170	RNA 4930	-	-	-	-	-	4090	170	210	60	2	201	324000	712000	2500
175	-	-	RNA 4832	-	-	-	1850	175	200	40	1.1	193.5	173000	474000	2500
180	RNA 4932	-	-	-	-	-	4310	180	220	60	2	211	337000	761000	1900
185	-	-	RNA 4834	-	-	-	2700	185	215	45	1.1	208.5	211000	567000	1900
190	RNA 4934	-	-	-	-	-	4530	190	230	60	2	221	347000	810000	1900
195	-	-	RNA 4836	-	-	-	2840	195	225	45	1.1	218.5	218000	602000	1900
205	RNA 4936	-	-	-	-	-	6250	205	250	69	2	241	434000	989000	1900
210	-	-	RNA 4838	-	-	-	3380	210	240	50	1.5	232	249000	726000	1800
215	RNA 4938	-	-	-	-	-	6500	215	260	69	2	251	440000	1020000	1700
220	-	-	RNA 4840	-	-	-	3520	220	250	50	1.5	242	255000	766000	1600
225	RNA 4940	-	-	-	-	-	10400	225	280	80	2.1	269	518000	1120000	1600
240	-	-	RNA 4844	-	-	-	3820	240	270	50	1.5	262	266000	833000	1500
245	RNA 4944	-	-	-	-	-	11200	245	300	80	2.1	289	536000	1200000	1400
265	-	-	RNA 4848	-	-	-	5670	265	300	60	2	291	345000	1150000	1300
265	RNA 4948	-	-	-	-	-	12000	265	320	80	2.1	309	565000	1320000	1300
285	-	-	RNA 4852	-	-	-	6070	285	320	60	2	311	354000	1220000	1100
290	RNA 4952	-	-	-	-	-	21200	290	360	100	2.1	349	847000	1900000	1100
305	-	-	RNA 4856	-	-	-	9750	305	350	69	2	341	486000	1550000	950
310	RNA 4956	-	-	-	-	-	22500	310	380	100	2.1	369	877000	2040000	950
330	-	-	RNA 4860	-	-	-	13200	330	380	80	2.1	369	610000	1900000	900
340	RNA 4960	-	-	-	-	-	33400	340	420	118	3	407	1130000	2650000	850
350	-	-	RNA 4864	-	-	-	14100	350	400	80	2.1	389	635000	2040000	750
360	RNA 4964	-	-	-	-	-	35200	360	440	118	3	427	1170000	2830000	750
370	-	-	RNA 4868	-	-	-	14800	370	420	80	2.1	409	651000	2140000	700
380	RNA 4968	-	-	-	-	-	37000	380	460	118	3	447	1220000	3020000	700
390	-	-	RNA 4872	-	-	-	15600	390	440	80	2.1	429	680000	2320000	650
400	RNA 4972	-	-	-	-	-	38700	400	480	118	3	467	1260000	3200000	600
415	-	-	RNA 4876	-	-	-	27900	415	480	100	2.1	469	951000	2860000	600
430	RNA 4976	-	-	-	-	-	56400	430	520	140	4	504	1540000	4030000	500
450	RNA 4980	-	-	-	-	-	58800	450	540	140	4	524	1590000	4270000	500
470	RNA 4984	-	-	-	-	-	61200	470	560	140	4	544	1640000	4510000	500
490	RNA 4988	-	-	-	-	-	86900	490	600	160	4	584	1910000	5140000	400

備註：TAF 的內徑圓直徑 Fw 為 26mm 以下的軸承沒有油孔，其他的在外圈上設有油槽並設 1 個油孔。

車削型針狀軸承附帶內圈

NA49,TAFI

NA69

TRI

GTRI

軸徑 m/m	公稱型號						重量 g	主要尺寸 (m/m)							相關安裝尺寸 (m/m)			基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM	搭配的內圈
	NA 49	NA 69	NA 48	TAFI	TRI	GTRI		d	D	C	B	r	Fw	S	da		Da
	NA 49	NA 69	NA 48	TAFI	TRI	GTRI		d	D	C	B	r	Fw	S	最小	最大	最大
5	NA 495	-	-	-	-	-	7.3	5	13	10	-	0.15	7	0.5	6.2	6.7	11.8	2960	2690	60000	LRT-5710
5	-	-	-	TAFI 51512	-	-	11.9	5	15	12	-	0.2	8	0.5	6.6	7.7	13.4	5060	4690	50000	LRT-5812
5	-	-	-	TAFI 51516	-	-	16.7	5	15	16	-	0.2	8	0.5	6.6	7.7	13.4	7080	7220	50000	LRT-5816
6	NA 496	-	-	-	-	-	9.1	6	15	10	-	0.15	8	0.5	7.2	7.7	13.8	3960	3420	50000	LRT-6810
6	-	-	-	TAFI 61612	-	-	13	6	16	12	-	0.2	9	0.5	7.6	8.7	14.4	5490	5330	45000	LRT-6912
6	-	-	-	TAFI 61616	-	-	17.5	6	16	16	-	0.2	9	0.5	7.6	8.7	14.4	7680	8210	45000	LRT-6916
7	NA 497	-	-	-	-	-	11.2	7	17	10	-	0.15	9	0.5	8.2	8.7	15.8	4530	3650	45000	LRT-7910
7	-	-	-	TAFI 71712	-	-	14.3	7	17	12	-	0.2	10	0.5	8.6	9.7	15.4	5880	5970	40000	LRT-71012
7	-	-	-	TAFI 71716	-	-	19.2	7	17	16	-	0.2	10	0.5	8.6	9.7	15.4	8230	9190	40000	LRT-71016
8	NA 498	-	-	-	-	-	15	8	19	11	-	0.2	10	0.5	9.6	9.9	17.4	6180	5030	40000	LRT-81011
9	-	-	-	TAFI 91912	-	-	16.7	9	19	12	-	0.3	12	0.5	11	11.5	17	6610	7260	35000	LRT-91212
9	-	-	-	TAFI 91916	-	-	22.5	9	19	16	-	0.3	12	0.5	11	11.5	17	9250	11200	35000	LRT-91216
9	NA 499	-	-	-	-	-	16.7	9	20	11	-	0.3	12	0.5	11	11.5	18	6600	6310	35000	LRT-91211
10	NA 4900	-	-	-	-	-	24	10	22	13	-	0.3	14	0.5	12	13	20	9230	10100	30000	LRT-101413
10	-	-	-	TAFI 102216	-	-	30	10	22	16	-	0.3	14	0.5	12	13	20	11700	13700	30000	LRT-101416
10	-	-	-	TAFI 102220	-	-	38	10	22	20	-	0.3	14	0.5	12	13	20	14800	18600	30000	LRT-101420
12	NA 4901	-	-	-	-	-	26.5	12	24	13	-	0.3	16	0.5	14	15	22	9660	11100	25000	LRT-121613
12	-	-	-	TAFI 122416	-	-	33.5	12	24	16	-	0.3	16	0.5	14	15	22	12300	15100	25000	LRT-121616
12	-	-	-	TAFI 122420	-	-	42.5	12	24	20	-	0.3	16	0.5	14	15	22	15500	20400	25000	LRT-121620
12	-	NA 6901	-	-	-	-	44.5	12	24	22	-	0.3	16	0.5	14	15	22	17100	23000	25000	LRT-121622
15	-	-	-	TAFI 152716	-	-	39.5	15	27	16	-	0.3	19	0.5	17	18	25	14000	18700	20000	LRT-151916
15	-	-	-	TAFI 152720	-	-	50	15	27	20	-	0.3	19	0.5	17	18	25	17700	25300	20000	LRT-151920
15	NA 4902	-	-	-	-	-	35	15	28	13	-	0.3	20	0.3	17	19	26	10900	13800	20000	LRT-152013
15	-	NA 6902	-	-	-	-	61	15	28	23	-	0.3	20	0.3	17	19	26	19300	28800	20000	LRT-152023
15	-	-	-	-	TRI 153320	-	81	15	33	20	20.5	0.3	20	0.3	17	19	31	24300	26500	20000	LRT-152020
15	-	-	-	-	-	GTRI 153320	90.5	15	33	20	20.5	0.3	20	-	17	19	31	29200	37200	7500	LRTZ-152020
17	-	-	-	TAFI 172916	-	-	43.5	17	29	16	-	0.3	21	0.5	19	20	27	14400	20000	19000	LRT-172116
17	-	-	-	TAFI 172920	-	-	54	17	29	20	-	0.3	21	0.5	19	20	27	18200	27100	19000	LRT-172120
17	NA 4903	-	-	-	-	-	39	17	30	13	-	0.3	22	0.3	19	21	28	11700	15600	18000	LRT-172213
17	-	NA 6903	-	-	-	-	67	17	30	23	-	0.3	22	0.3	19	21	28	20800	32500	18000	LRT-172223
17	-	-	-	-	TRI 173425	-	104	17	34	25	25.5	0.3	22	0.5	19	21	32	29100	36800	18000	LRT-172225
17	-	-	-	-	-	GTRI 173425	117	17	34	25	25.5	0.3	22	-	19	21	32	37900	57800	7000	LRTZ-172225
20	-	-	-	TAFI 203216	-	-	48.5	20	32	16	-	0.3	24	0.5	22	23	30	15300	22500	17000	LRT-202416
20	-	-	-	TAFI 203220	-	-	61	20	32	20	-	0.3	24	0.5	22	23	30	19400	30500	17000	LRT-202420
20	NA 4904	-	-	-	-	-	78.5	20	37	17	-	0.3	25	0.5	22	24	35	21000	25000	16000	LRT-202517
20	-	NA 6904	-	-	-	-	136	20	37	30	-	0.3	25	0.5	22	24	35	35400	48900	16000	LRT-202530
20	-	-	-	-	TRI 203820	-	99	20	38	20	20.5	0.3	25	0.3	22	24	36	28900	35000	16000	LRT-202520
20	-	-	-	-	TRI 203825	-	124	20	38	25	25.5	0.3	25	0.5	22	24	36	34800	44400	16000	LRT-202525
20	-	-	-	-	-	GTRI 203820	110	20	38	20	20.5	0.3	25	-	22	24	36	33300	46500	6000	LRTZ-202520
20	-	-	-	-	-	GTRI 203825	138	20	38	25	25.5	0.3	25	-	22	24	36	42400	63700	6000	LRTZ-202525
22	-	-	-	TAFI 223416	-	-	52	22	34	16	-	0.3	26	0.5	24	25	32	16300	24900	15000	LRT-222616
22	-	-	-	TAFI 223420	-	-	67.5	22	34	20	-	0.3	26	0.5	24	25	32	20600	33800	15000	LRT-222620
22	NA 49/22	-	-	-	-	-	87	22	39	17	-	0.3	28	1	24	27	37	21400	28900	14000	LRT-222817
22	-	NA 69/22	-	-	-	-	152	22	39	30	-	0.3	28	0.5	24	27	37	36300	56900	14000	LRT-222830
25	-	-	-	TAFI 253820	-	-	82	25	38	20	-	0.3	29	0.5	27	28	36	21600	37200	14000	LRT-252920
25	-	-	-	TAFI 253830	-	-	123	25	38	30	-	0.3	29	1	27	28	36	30900	59100	14000	LRT-252930
25	NA 4905	-	-	-	-	-	92.5	25	42	17	-	0.3	30	0.5	27	29	40	23700	30700	13000	LRT-253017
25	-	NA 6905	-	-	-	-	160	25	42	30	-	0.3	30	0.5	27	29	40	42100	64300	13000	LRT-253030
25	-	-	-	-	TRI 254425	-	157	25	44	25	25.5	0.3	30	0.5	27	29	42	37900	52100	13000	LRT-253025
25	-	-	-	-	-	GTRI 254425	175	25	44	25	25.5	0.3	30	-	27	29	42	47000	76500	5000	LRTZ-253025
28	-	-	-	TAFI 284220	-	-	96.5	28	42	20	-	0.3	32	0.5	30	31	40	25700	42200	12000	LRT-283220
28	-	-	-	TAFI 284230	-	-	145	28	42	30	-	0.3	32	1	30	31	40	36800	67200	12000	LRT-283230
28	NA 49/28	-	-	-	-	-	101	28	45	17	-	0.3	32	1	30	31	43	24500	32700	12000	LRT-283217
28	-	NA 69/28	-	-	-	-	176	28	45	30	-	0.3	32	1	30	31	43	41800	64800	12000	LRT-283230
28	-	-	-	-	-	GTRI 284530	196	28	45	30	30.5	0.3	32	-	30	31	43	58000	101000	4500	LRTZ-283230
30	-	-	-	TAFI 304520	-	-	112	30	45	20	-	0.3	35	0.3	32	34	43	26900	46200	11000	LRT-303520
30	-	-	-	TAFI 304530	-	-	171	30	45	30	-	0.3	35	0.5	32	34	43	38600	73600	11000	LRT-303530
30	NA 4906	-	-	-	-	-	106	30	47	17	-	0.3	35	0.5	32	34	45	25200	34700	11000	LRT-303517
30	-	NA 6906	-	-	-	-	184	30	47	30	-	0.3	35	0.5	32	34	45	43000	69000	11000	LRT-303530
30	-	-	-	-	TRI 304830	-	199	30	48	30	30.5	0.3	35	1	32	34	46	47400	72300	11000	LRT-303530-1
30	-	-	-	-	-	GTRI 304830	225	30	48	30	30.5	0.3	35	-	32	34	46	61100	110000	45000	LRTZ-303530
32	-	-	-	TAFI 324720	-	-	121	32	47	20	-	0.3	37	0.3	34	36	45	28200	50100	11000	LRT-323720
32	-	-	-	TAFI 324730	-	-	180	32	47	30	-	0.3	37	0.5	34	36	45	40500	79800	11000	LRT-323730
32	NA 49/32	-	-	-	-	-	165	32	52	20	-	0.6	40	0.5	36	39	48	31200	47800	10000	LRT-324020
32	-	-	-	-	TRI 325230	-	245	32	52	30	30.5	0.6	38	0.5	36	37	48	50800	81100	11000	LRT-323830
32	-	NA 69/32	-	-	-	-	295	32	52	36	-	0.6	40	0.3	36	39	48	53500	95700	10000	LRT-324036
32	-	-	-	-	-	GTRI 325230	270	32	52	30	30.5	0.6	38	-	36	37	48	64200	121000	4000	LRTZ-323830
35	-	-	-	TAFI 355020	-	-	129	35	50	20	-	0.3	40	0.3	37	39	48	29400	54100	10000	LRT-354020
35	-	-	-	TAFI 355030	-	-	192	35	50	30	-	0.3	40	0.5	37	39	48	42300	86200	10000	LRT-354030
35	NA 4907	-	-	-	-	-	178	35	55	20	-	0.6	42	0.5	39	41	51	32000	50100	9500	LRT-354220
35	-	NA 6907	-	-	-	-	320	35	55	36	-	0.6	42	0.3	39	41	51	54900	100000	9500	LRT-354236
35	-	-	-	-	TRI 355630	-	280	35	56	30	30.5	0.6	42	0.5	39	41	52	53800	90100	9500	LRT-354230
35	-	-	-	-	-	GTRI 355520	191	35	55	20	20.5	0.6	40	-	39	39.5	51	44300	73600	3500	LRTZ-354020
35	-	-	-	-	-	GTRI 355630	310	35	56	30	30.5	0.6	42	-	39	41	52	67500	133000	3500	LRTZ-354230
38	-	-	-	TAFI 385320	-	-	136	38	53	20	-	0.3	43	0.3	40	42	51	30500	58200	9500	LRT-384320
38	-	-	-	TAFI 385330	-	-	205	38	53	30	-	0.3	43	0.5	40	42	51	43800	92600	9500	LRT-384330
40	-	-	-	TAFI 405520	-	-	143	40	55	20	-	0.3	45	0.3	42	44	53	31000	60200	9000	LRT-404520
40	-	-	-	TAFI 505530	-	-	215	40	55	30	-	0.3	45	0.5	42	44	53	44600	95800	9000	LRT-404530
40	-	-	-	-	TRI 405930	-	270	40	59	30	30.5	0.6	45	1	44	44.5	55	55100	94800	9000	LRT-404530-1
40	NA 4908	-	-	-	-	-	245	40	62	22	-	0.6	48	0.5	44	47	58	41600	67400	8500	LRT-404822
40	-	NA 6908	-	-	-	-	440	40	62	40	-	0.6	48	0.3	44	47	58	71300	135000	8500	LRT-404840
40	-	-	-	-	-	GTRI 405930	300	40	59	30	30.5	0.6	45	-	44	44.5	55	70300	142000	3500	LRTZ-404530
42	-	-	-	TAFI 425720	-	-	149	42	57	20	-	0.3	47	0.3	44	46	55	31500	62200	8500	LRT-424720
42	-	-	-	TAFI 425730	-	-	225	42	57	30	-	0.3	47	0.5	44	46	55	45200	99100	8500	LRT-424730
42	-	-	-	-	TRI 426230	-	305	42	62	30	30.5	0.6	48	0.5	46	47	58	56300	99500	8500	LRT-424830
42	-	-	-	-	-	GTRI 426230	340	42	62	30	30.5	0.6	48	-	46	47	58	72700	154000	3000	LRTZ-424830
45	-	-	-	TAFI 456225	-	-	230	45	62	25	-	0.3	50	0.5	47	49	60	43000	85300	8000	LRT-455025
45	-	-	-	TAFI 456235	-	-	320	45	62	35	-	0.3	50	1	47	49	60	58000	125000	8000	LRT-455035
45	-	-	-	-	TRI 456430	-	300	45	64	30	30.5	0.6	50	1	49	49.5	60	57700	104000	8000	LRT-455030
45	NA 4909	-	-	-	-	-	285	45	68	22	-	0.6	52	0.5	49	51	64	43500	73300	7500	LRT-455222
45	-	NA 6909	-	-	-	-	520	45	68	40	-	0.6	52	0.3	49	51	64	74600	147000	7500	LRT-455240
45	-	-	-	-	-	GTRI 456430	335	45	64	30	30.5	0.6	50	-	49	49.5	60	74600	158000	3000	LRTZ-455030
50	-	-	-	TAFI 506825	-	-	270	50	68	25	-	0.3	55	0.5	52	54	66	45400	94000	7500	LRT-505525
50	-	-	-	TAFI 506835	-	-	365	50	68	35	-	0.3	55	1	52	54	66	61200	138000	7500	LRT-505535
50	NA 4910	-	-	-	-	-	295	50	72	22	-	0.6	58	0.5	54	57	68	46200	82100	7000	LRT-505822
50	-	NA 6910	-	-	-	-	530	50	72	40	-	0.6	58	0.3	54	57	68	79200	164000	7000	LRT-505840
50	-	-	-	-	TRI 507745	-	755	50	77	45	45.5	1	58	2	55	57	72	104000	191000	7000	LRT-505845
50	-	-	-	-	-	GTRI 507745	825	50	77	45	45.5	1	58	-	55	57	72	135000	280000	2500	LRTZ-505845
55	-	-	-	TAFI 557225	-	-	275	55	72	25	-	0.3	60	0.5	57	59	70	47500	103000	6500	LRT-556025
55	-	-	-	TAFI 557235	-	-	380	55	72	35	-	0.3	60	1	57	59	70	64100	151000	6500	LRT-556035
55	NA 4911	-	-	-	-	-	410	55	80	25	-	1	63	1	60	61	75	57600	97200	6500	LRT-556325
55	-	NA 6911	-	-	-	-	730	55	80	45	-	1	63	0.5	60	61	75	98700	194000	6500	LRT-556345
55	-	-	-	-	TRI 558138	-	650	55	81	38	38.5	1	62	1.5	60	60.5	76	92000	166000	6500	LRT-556238
55	-	-	-	-	-	GTRI 558138	710	55	81	38	38.5	1	62	-	60	60.5	76	118000	241000	2500	LRTZ-556238
60	-	-	-	TAFI 608225	-	-	395	60	82	25	-	0.6	68	0.3	64	66	78	54800	117000	6000	LRT-606825
60	-	-	-	TAFI 608235	-	-	560	60	82	35	-	0.6	68	1	64	66	78	72000	166000	6000	LRT-606835
60	NA 4912	-	-	-	-	-	440	60	85	25	-	1	68	1	65	66	80	60200	105000	6000	LRT-606825-1
60	-	NA 6912	-	-	-	-	785	60	85	45	-	1	68	0.5	65	66	80	103000	211000	6000	LRT-606845
60	-	-	-	-	TRI 608945	-	960	60	89	45	45.5	1	70	2	65	68	84	114000	228000	5500	LRT-607045
60	-	-	-	-	-	GTRI 608945	1050	60	89	45	45.5	1	70	-	65	68	84	147000	336000	2000	LRTZ-607045
65	NA 4913	-	-	-	-	-	470	65	90	25	-	1	72	1	70	70.5	85	62700	113000	5500	LRT-657225
65	-	-	-	TAFI 659035	-	-	710	65	90	35	-	1	73	1	70	71	85	80400	181000	5500	LRT-657335
65	-	NA 6913	-	-	-	-	840	65	90	45	-	1	72	0.5	70	70.5	85	108000	227000	5500	LRT-657245
70	-	-	-	TAFI 709525	-	-	540	70	95	25	-	1	80	0.3	75	78	90	59400	137000	5000	LRT-708025
70	-	-	-	TAFI 709535	-	-	755	70	95	35	-	1	80	1	75	78	90	78100	195000	5000	LRT-708035
70	NA 4914	-	-	-	-	-	765	70	100	30	-	1	80	1.5	75	78	95	83200	158000	5000	LRT-708030
70	-	NA 6914	-	-	-	-	1400	70	100	54	-	1	80	1	75	78	95	134000	311000	5000	LRT-708054
75	-	-	-	TAFI 7510525	-	-	675	75	105	25	-	1	85	0.5	80	83	100	76300	145000	4500	LRT-758525
75	NA 4915	-	-	-	-	-	810	75	105	30	-	1	85	1.5	80	83	100	86200	169000	4500	LRT-758530
75	-	-	-	TAFI 7510535	-	-	945	75	105	35	-	1	85	1.5	80	83	100	102000	210000	4500	LRT-758535
75	-	NA 6915	-	-	-	-	1480	75	105	54	-	1	85	1	80	83	100	138000	331000	4500	LRT-758554
75	-	-	-	-	TRI 7510845	-	1340	75	108	45	45.5	1	83	2.5	80	81	103	146000	270000	5000	LRT-758345
75	-	-	-	-	-	GTRI 7510845	1440	75	108	45	45.5	1	83	-	80	81	103	190000	396000	1800	LRTZ-758345
80	-	-	-	TAFI 8011025	-	-	710	80	110	25	-	1	90	0.5	85	88	105	77300	150000	4500	LRT-809025
80	NA 4916	-	-	-	-	-	855	80	110	30	-	1	90	1.5	85	88	105	87300	175000	4500	LRT-809030
80	-	-	-	TAFI 8011035	-	-	995	80	110	35	-	1	90	1.5	85	88	105	103000	217000	4500	LRT-809035
80	-	NA 6916	-	-	-	-	1560	80	110	54	-	1	90	1	85	88	105	143000	351000	4500	LRT-809054
85	-	-	-	TAFI 8511526	-	-	775	85	115	26	-	1	95	1	90	93	110	79700	159000	4000	LRT-859526
85	-	-	-	TAFI 8511536	-	-	1080	85	115	36	-	1	95	2	90	93	110	106000	231000	4000	LRT-859536
85	NA 4917	-	-	-	-	-	1280	85	120	35	-	1.1	100	1	91.5	98	113.5	110000	244000	4000	LRT-8510035
85	-	NA 6917	-	-	-	-	2340	85	120	63	-	1.1	100	0.5	91.5	98	113.5	173000	467000	4000	LRT-8510063
85	-	-	-	-	TRI 8511850	-	1640	85	118	50	50.5	1	93	3	90	91	113	165000	329000	4500	LRT-859350
85	-	-	-	-	TRI 8512045	-	1610	85	120	45	45.5	1.5	95	2.5	93	93.5	112	155000	305000	4000	LRT-859545
85	-	-	-	-	-	GTRI 8511850	1780	85	118	50	50.5	1	93	-	90	91	113	224000	509000	1600	LRTZ-859350
85	-	-	-	-	-	GTRI 8512045	1720	85	120	45	45.5	1.5	95	-	93	93.5	112	204000	455000	1600	LRTZ-859545
90	-	-	-	TAFI 9012026	-	-	820	90	120	26	-	1	100	1	95	98	115	82400	168000	4000	LRT-9010026
90	-	-	-	TAFI 9012036	-	-	1140	90	120	36	-	1	100	2	95	98	115	110000	244000	4000	LRT-9010036
90	NA 4918	-	-	-	-	-	1350	90	125	35	-	1.1	105	1	96.5	103	118.5	113000	258000	4000	LRT-9010535
90	-	-	-	-	TRI 9012550	-	1870	90	125	50	50.5	1.5	100	3	98	98.5	117	172000	355000	4000	LRT-9010050
90	-	NA 6918	-	-	-	-	2460	90	125	63	-	1.1	105	0.5	96.5	103	118.5	178000	490000	4000	LRT-9010563
90	-	-	-	-	-	GTRI 9012550	2020	90	125	50	50.5	1.5	100	-	98	98.5	117	234000	549000	1500	LRTZ-9010050
95	-	-	-	TAFI 9512526	-	-	860	95	125	26	-	1	105	1	100	103	120	84700	178000	4000	LRT-9510526
95	-	-	-	TAFI 9512536	-	-	1190	95	125	36	-	1	105	2	100	103	120	113000	258000	4000	LRT-9510536
95	NA 4919	-	-	-	-	-	1420	95	130	35	-	1.1	110	1	101.5	108	123.5	116000	271000	3500	LRT-9511035
95	-	NA 6919	-	-	-	-	2580	95	130	63	-	1.1	110	0.5	101.5	108	123.5	182000	514000	3500	LRT-9511063
100	-	-	-	TAFI 10013030	-	-	1040	100	130	30	-	1	110	0.5	105	108	125	106000	240000	3500	LRT-10011030
100	-	-	-	TAFI 10013040	-	-	1380	100	130	40	-	1	110	1.5	105	108	125	134000	324000	3500	LRT-10011040
100	-	-	-	-	TRI 10013550	-	2040	100	135	50	50.5	1.5	110	3	108	108.5	127	183000	395000	3500	LRT-10011050
100	NA 4920	-	-	-	-	-	1960	100	140	40	-	1.1	115	1	106.5	113	133.5	145000	329000	3500	LRT-10011540
100	-	-	-	-	-	GTRI 10013550	2200	100	135	50	50.5	1.5	110	-	108	108.5	127	245000	603000	1400	LRTZ-10011050
105	-	-	-	-	TRI 10515350	-	3020	105	153	50	50.5	1.5	115	3	113	113.5	145	233000	414000	3500	LRT-10511550
105	-	-	-	-	-	GTRI 10515350	3270	105	153	50	50.5	1.5	115	-	113	113.5	145	315000	614000	1300	LRTZ-10511550
110	-	-	NA 4822	-	-	-	1200	110	140	30	-	1	120	1	115	118	135	93200	239000	3500	LRT-11012030
110	NA 4922	-	-	-	-	-	2120	110	150	40	-	1.1	125	1	116.5	123	143.5	152000	357000	3000	LRT-11012540
120	-	-	NA 4824	-	-	-	1300	120	150	30	-	1	130	1	125	128	145	96900	259000	3000	LRT-12013030
120	NA 4924	-	-	-	-	-	2960	120	165	45	-	1.1	135	2	126.5	133	158.5	187000	435000	3000	LRT-12013545
125	-	-	-	-	TRI 12517860	-	4780	125	178	60	60.5	1.5	140	2.5	133	138	170	307000	625000	3000	LRT-12514060
125	-	-	-	-	-	GTRI 12517860	5180	125	178	60	60.5	1.5	140	-	133	138	170	409000	923000	1100	LRTZ-12514060
130	-	-	NA 4826	-	-	-	1960	130	165	35	-	1.1	145	1	136.5	143	158.5	116000	340000	3000	LRT-13014535
130	NA 4926	-	-	-	-	-	4030	130	180	50	-	1.5	150	2.5	138	148	172	215000	540000	2500	LRT-13015050
135	-	-	-	-	TRI 13518860	-	5100	135	188	60	60.5	1.5	150	2.5	143	148	180	320000	675000	2500	LRT-13515060
135	-	-	-	-	-	GTRI 13518860	5530	135	188	60	60.5	1.5	150	-	143	148	180	423000	989000	1000	LRTZ-13515060
140	-	-	NA 4828	-	-	-	2100	140	175	35	-	1.1	155	1	146.5	153	168.5	120000	363000	2500	LRT-14015535
140	NA 4928	-	-	-	-	-	4290	140	190	50	-	1.5	160	2.5	148	158	182	224000	580000	2500	LRT-14016050
150	-	-	NA 4830	-	-	-	2880	150	190	40	-	1.1	165	1.5	156.5	163	183.5	168000	446000	2500	LRT-15016540
150	NA 4930	-	-	-	-	-	6380	150	210	60	-	2	170	3	159	168	201	324000	712000	2500	LRT-15017060
160	-	-	NA 4832	-	-	-	3050	160	200	40	-	1.1	175	1.5	166.5	173	193.5	173000	474000	2500	LRT-16017540
160	NA 4932	-	-	-	-	-	6750	160	220	60	-	2	180	3	169	178	211	337000	761000	1900	LRT-16018060
170	-	-	NA 4834	-	-	-	4120	170	215	45	-	1.1	185	1.5	176.5	183	208.5	211000	567000	1900	LRT-17018545
170	NA 4934	-	-	-	-	-	7110	170	230	60	-	2	190	3	179	188	221	347000	810000	1900	LRT-17019060
180	-	-	NA 4836	-	-	-	4340	180	225	45	-	1.1	195	1.5	186.5	193	218.5	218000	602000	1900	LRT-18019545
180	NA 4936	-	-	-	-	-	10200	180	250	69	-	2	205	3	189	203	241	434000	989000	1900	LRT-18020569
190	-	-	NA 4838	-	-	-	5760	190	240	50	-	1.5	210	1.5	198	208	232	249000	726000	1800	LRT-19021050
190	NA 4938	-	-	-	-	-	10700	190	260	69	-	2	215	3	199	213	251	440000	1020000	1700	LRT-19021569
200	-	-	NA 4840	-	-	-	6040	200	250	50	-	1.5	220	1.5	208	218	242	255000	766000	1600	LRT-20022050
200	NA 4940	-	-	-	-	-	15400	200	280	80	-	2.1	225	4	211	223	269	518000	1120000	1600	LRT-20022580
220	-	-	NA 4844	-	-	-	6570	220	270	50	-	1.5	240	1.5	228	238	262	266000	833000	1500	LRT-22024050
220	NA 4944	-	-	-	-	-	16700	220	300	80	-	2.1	245	4	231	243	289	536000	1200000	1400	LRT-22024580
240	-	-	NA 4848	-	-	-	10200	240	300	60	-	2	265	2	249	262	291	345000	1150000	1300	LRT-24026560
240	NA 4948	-	-	-	-	-	18000	240	320	80	-	2.1	265	4	251	262	309	565000	1320000	1300	LRT-24026580
260	-	-	NA 4852	-	-	-	11000	260	320	60	-	2	285	2	269	282	311	354000	1220000	1100	LRT-26028560
260	NA 4952	-	-	-	-	-	31100	260	360	100	-	2.1	290	4	271	287	349	847000	1900000	1100	LRT-260290100
280	-	-	NA 4856	-	-	-	15800	280	350	69	-	2	305	2.5	289	302	341	486000	1550000	950	LRT-28030569
280	NA 4956	-	-	-	-	-	33100	280	380	100	-	2.1	310	4	291	307	369	877000	2040000	950	LRT-280310100
300	-	-	NA 4860	-	-	-	22300	300	380	80	-	2.1	330	2.5	311	327	369	610000	1900000	900	LRT-30033080
300	NA 4960	-	-	-	-	-	51400	300	420	118	-	3	340	4	313	337	407	1130000	2650000	850	LRT-300340118
320	-	-	NA 4864	-	-	-	23700	320	400	80	-	2.1	350	2.5	331	347	389	635000	2040000	750	LRT-32035080
320	NA 4964	-	-	-	-	-	54400	320	440	118	-	3	360	4	333	357	427	1170000	2830000	750	LRT-320360118
340	-	-	NA 4868	-	-	-	25000	340	420	80	-	2.1	370	2.5	351	367	409	651000	2140000	700	LRT-34037080
340	NA 4968	-	-	-	-	-	57300	340	460	118	-	3	380	4	353	377	447	1220000	3020000	700	LRT-340380118
360	-	-	NA 4872	-	-	-	26400	360	440	80	-	2.1	390	2.5	371	387	429	680000	2320000	650	LRT-36039080
360	NA 4972	-	-	-	-	-	60200	360	480	118	-	3	400	4	373	397	467	1260000	3200000	600	LRT-360400118
380	-	-	NA 4876	-	-	-	44600	380	480	100	-	2.1	415	3	391	412	469	951000	2860000	600	LRT-380415100
380	NA 4976	-	-	-	-	-	90300	380	520	140	-	4	430	5	396	427	504	1540000	4030000	500	LRT-380430140
400	NA 4980	-	-	-	-	-	94400	400	540	140	-	4	450	5	416	447	524	1590000	4270000	500	LRT-400450140
420	NA 4984	-	-	-	-	-	98500	420	560	140	-	4	470	5	436	467	544	1640000	4510000	500	LRT-420470140
440	NA 4988	-	-	-	-	-	131000	440	600	160	-	4	490	5	456	487	584	1910000	5140000	400	LRT-440490160

備註：外圈上設有油槽並設一個油孔。

車削型針狀軸承無內圈(英制)

軸徑 m/m (inch)	公稱型號	重量 g	主要尺寸 m/m (inch)			相關安裝尺寸 m/m		基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
軸徑 m/m (inch)	公稱型號	重量 g	Fw	D	C	Da 最大	r	基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
15.875 (5/8)	BR 101812	49	15.875 (5/8)	28.575 (1 1/8)	19.050 (3/4)	24.5	0.6	18900	19700	25000
19.050 (3/4)	BR 122012	56	19.050 (3/4)	31.750 (1 1/4)	19.050 (3/4)	26.5	1	21700	24400	20000
19.050 (3/4)	BR 122016	75	19.050 (3/4)	31.750 (1 1/4)	25.400 ( 1 )	26.5	1	27600	33100	20000
22.225 (7/8)	BR 142212	63	22.225 (7/8)	34.925 (1 3/8)	19.050 (3/4)	29.7	1	23000	27100	18000
22.225 (7/8)	BR 142216	84.5	22.225 (7/8)	34.925 (1 3/8)	25.400 ( 1 )	29.7	1	29100	36800	18000
25.400 ( 1 )	BR 162412	69	25.400 ( 1 )	38.100 (1 1/2)	19.050 (3/4)	32.9	1	25300	31900	16000
25.400 ( 1 )	BR 162416	92.5	25.400 ( 1 )	38.100 (1 1/2)	25.400 ( 1 )	32.9	1	32100	43300	16000
28.575 (1 1/8)	BR 182616	102	28.575 (1 1/8)	41.275 (1 5/8)	25.400 ( 1 )	36	1	34900	49900	14000
28.575 (1 1/8)	BR 182620	128	28.575 (1 1/8)	41.275 (1 5/8)	31.750 (1 1/4)	36	1	43200	65600	14000
31.750 (1 1/4)	BR 202816	110	31.750 (1 1/4)	44.450 (1 3/4)	25.400 ( 1 )	39.2	1	36000	53500	13000
31.750 (1 1/4)	BR 202820	138	31.750 (1 1/4)	44.450 (1 3/4)	31.750 (1 1/4)	39.2	1	44600	70300	13000
34.925 (1 3/8)	BR 223016	119	34.925 (1 3/8)	47.625 (1 7/8)	25.400 ( 1 )	42.4	1	38500	60000	11000
34.925 (1 3/8)	BR 223020	149	34.925 (1 3/8)	47.625 (1 7/8)	31.750 (1 1/4)	42.4	1	47700	78900	11000
38.100 (1 1/2)	BR 243316	149	38.100 (1 1/2)	52.388 (2 1/16)	25.400 ( 1 )	45.1	1.5	43700	66900	11000
38.100 (1 1/2)	BR 243320	187	38.100 (1 1/2)	52.388 (2 1/16)	31.750 (1 1/4)	45.1	1.5	54200	88200	11000
41.275 (1 5/8)	BR 263516	158	41.275 (1 5/8)	55.562 (2 3/16)	25.400 ( 1 )	48.3	1.5	44800	70900	9500
41.275 (1 5/8)	BR 263520	199	41.275 (1 5/8)	55.562 (2 3/16)	31.750 (1 1/4)	48.3	1.5	55600	93400	9500
44.450 (1 3/4)	BR 283716	170	44.450 (1 3/4)	58.738 (2 5/16)	25.400 ( 1 )	51.5	1.5	47500	78200	9000
44.450 (1 3/4)	BR 283720	215	44.450 (1 3/4)	58.738 (2 5/16)	31.750 (1 1/4)	51.5	1.5	58900	103000	9000
44.450 (1 3/4)	BR 283820	250	44.450 (1 3/4)	60.325 (2 3/8)	31.750 (1 1/4)	53.1	1.5	58900	103000	9000
47.625 (1 7/8)	BR 303920	225	47.625 (1 7/8)	61.912 (2 7/16)	31.750 (1 1/4)	54.7	1.5	60100	108000	8500
50.800 ( 2 )	BR 324116	190	50.800 ( 2 )	65.088 (2 9/16)	25.400 ( 1 )	57.8	1.5	51000	89400	8000
50.800 ( 2 )	BR 324120	240	50.800 ( 2 )	65.088 (2 9/16)	31.750 (1 1/4)	57.8	1.5	63200	118000	8000
57.150 (2 1/4)	BR 364824	435	57.150 (2 1/4)	76.200 ( 3 )	38.100 (1 1/2)	69	1.5	90300	158000	7000
57.150 (2 1/4)	BR 364828	510	57.150 (2 1/4)	76.200 ( 3 )	44.450 (1 3/4)	69	1.5	105000	191000	7000
63.500 (2 1/2)	BR 405224	475	63.500 (2 1/2)	82.550 (3 1/4)	38.100 (1 1/2)	74.3	2	94600	174000	6500
63.500 (2 1/2)	BR 405228	555	63.500 (2 1/2)	82.550 (3 1/4)	44.450 (1 3/4)	74.3	2	110000	210000	6500
69.850 (2 3/4)	BR 445624	510	69.850 (2 3/4)	88.900 (3 1/2)	38.100 (1 1/2)	80.7	2	98700	189000	5500
69.850 (2 3/4)	BR 445628	600	69.850 (2 3/4)	88.900 (3 1/2)	44.450 (1 3/4)	80.7	2	114000	228000	5500
76.200 ( 3 )	BR 486024	555	76.200 ( 3 )	95.250 (3 3/4)	38.100 (1 1/2)	87	2	105000	211000	5500
76.200 ( 3 )	BR 486028	650	76.200 ( 3 )	95.250 (3 3/4)	44.450 (1 3/4)	87	2	122000	255000	5500
82.550 (3 1/4)	BR 526828	990	82.550 (3 1/4)	107.950 (4 1/4)	44.450 (1 3/4)	99.7	2	141000	259000	5000
82.550 (3 1/4)	BR 526832	1140	82.550 (3 1/4)	107.950 (4 1/4)	50.800 ( 2 )	99.7	2	154000	290000	5000
88.900 (3 1/2)	BR 567232	1220	88.900 (3 1/2)	114.300 (4 1/2)	50.800 ( 2 )	106.1	2	162000	316000	4500
95.250 (3 3/4)	BR 607632	1290	95.250 (3 3/4)	120.650 (4 3/4)	50.800 ( 2 )	111.4	2.5	169000	342000	4000
101.600 ( 4 )	BR 648032	1370	101.600 ( 4 )	127.000 ( 5 )	50.800 ( 2 )	117.8	2.5	176000	368000	4000

備註：內圈圓直徑 Fw 為 69.850 m/m 以下的軸承外圈上，設有油槽和一個油孔，其他的在外圈上設有油槽並設 2 個油孔。

車削型針狀軸承附帶內圈(英制)

BRI

軸徑 m/m (inch)	公稱型號	重量 g	主要尺寸 m/m (inch)						相關安裝尺寸 m/m				基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM	搭配的內圈
			d	D	C	B	Fw	S	da		Da	r
			d	D	C	B	Fw	S	最小	最大	最大	r
9.525 (3/8)	BRI 61812	67.5	9.525 (3/8)	28.575 (1 1/8)	19.050 (3/4)	19.3	15.875 (5/8)	0.3	14	14.5	24.5	0.6	18900	19700	25000	LRB-61012
12.700 (1/2)	BRI 82012	79.5	12.700 (1/2)	31.750 (1 1/4)	19.050 (3/4)	19.3	19.050 (3/4)	0.3	17.5	18	26.5	1	21700	24400	20000	LRB-81212
12.700 (1/2)	BRI 82016	106	12.700 (1/2)	31.750 (1 1/4)	25.400 ( 1 )	25.65	19.050 (3/4)	0.5	17.5	18	26.5	1	27600	33100	20000	LRB-81216
15.875 (5/8)	BRI 102212	91	15.875 (5/8)	34.925 (1 3/8)	19.050 (3/4)	19.3	22.225 (7/8)	0.3	21	21.2	29.7	1	23000	27100	18000	LRB-101412
15.875 (5/8)	BRI 102216	122	15.875 (5/8)	34.925 (1 3/8)	25.400 ( 1 )	25.65	22.225 (7/8)	0.5	21	21.2	29.7	1	29100	36800	18000	LRB-101416
19.050 (3/4)	BRI 122412	102	19.050 (3/4)	38.100 (1 1/2)	19.050 (3/4)	19.3	25.400 ( 1 )	0.3	24	24.4	32.9	1	25300	31900	16000	LRB-121612
19.050 (3/4)	BRI 122416	136	19.050 (3/4)	38.100 (1 1/2)	25.400 ( 1 )	25.65	25.400 ( 1 )	0.5	24	24.4	32.9	1	32100	43300	16000	LRB-121616
22.225 (7/8)	BRI 142616	152	22.225 (7/8)	41.275 (1 5/8)	25.400 ( 1 )	25.65	28.575 (1 1/8)	0.5	27	27.5	36	1	34900	49900	14000	LRB-141816
22.225 (7/8)	BRI 142620	190	22.225 (7/8)	41.275 (1 5/8)	31.750 (1 1/4)	32	28.575 (1 1/8)	0.5	27	27.5	36	1	43200	65600	14000	LRB-141820
25.400 ( 1 )	BRI 162816	166	25.400 ( 1 )	44.450 (1 3/4)	25.400 ( 1 )	25.65	31.750 (1 1/4)	0.5	30.5	30.7	39.2	1	36000	53500	13000	LRB-162016
25.400 ( 1 )	BRI 162820	210	25.400 ( 1 )	44.450 (1 3/4)	31.750 (1 1/4)	32	31.750 (1 1/4)	0.5	30.5	30.7	39.2	1	44600	70300	13000	LRB-162020
28.575 (1 1/8)	BRI 183016	182	28.575 (1 1/8)	47.625 (1 7/8)	25.400 ( 1 )	25.65	34.925 (1 3/8)	0.5	33.5	33.9	42.4	1	38500	60000	11000	LRB-182216
28.575 (1 1/8)	BRI 183020	225	28.575 (1 1/8)	47.625 (1 7/8)	31.750 (1 1/4)	32	34.925 (1 3/8)	0.5	33.5	33.9	42.4	1	47700	78900	11000	LRB-182220
31.750 (1 1/4)	BRI 203316	220	31.750 (1 1/4)	52.388 (2 1/16)	25.400 ( 1 )	25.65	38.100 (1 1/2)	0.5	37	37.1	45.1	1.5	43700	66900	11000	LRB-202416
31.750 (1 1/4)	BRI 203320	275	31.750 (1 1/4)	52.388 (2 1/16)	31.750 (1 1/4)	32	38.100 (1 1/2)	0.5	37	37.1	45.1	1.5	54200	88200	11000	LRB-202420
34.925 (1 3/8)	BRI 223516	235	34.925 (1 3/8)	55.562 (2 3/16)	25.400 ( 1 )	25.65	41.275 (1 5/8)	0.5	40.2	40.2	48.3	1.5	44800	70900	9500	LRB-222616
34.925 (1 3/8)	BRI 223520	295	34.925 (1 3/8)	55.562 (2 3/16)	31.750 (1 1/4)	32	41.275 (1 5/8)	0.5	40.2	40.2	48.3	1.5	55600	93400	9500	LRB-222620
38.100 (1 1/2)	BRI 243716	250	38.100 (1 1/2)	58.738 (2 5/16)	25.400 ( 1 )	25.65	44.450 (1 3/4)	0.5	43.3	43.4	51.5	1.5	47500	78200	9000	LRB-242816
38.100 (1 1/2)	BRI 243720	315	38.100 (1 1/2)	58.738 (2 5/16)	31.750 (1 1/4)	32	44.450 (1 3/4)	0.5	43.3	43.4	51.5	1.5	58900	103000	9000	LRB-242820
38.100 (1 1/2)	BRI 243820	350	38.100 (1 1/2)	60.325 (2 3/8)	31.750 (1 1/4)	32	44.450 (1 3/4)	0.5	43.3	43.4	53.1	1.5	58900	103000	9000	LRB-242820
38.100 (1 1/2)	BRI 243920	380	38.100 (1 1/2)	61.912 (2 7/16)	31.750 (1 1/4)	32	47.625 (1 7/8)	0.5	43.3	43.4	54.7	1.5	60100	108000	8500	LRB-243020
41.275 (1 5/8)	BRI 264116	325	41.275 (1 5/8)	65.088 (2 9/16)	25.400 ( 1 )	25.65	50.800 ( 2 )	0.5	48	49	57.8	1.5	51000	89400	8000	LRB-263216
41.275 (1 5/8)	BRI 264120	410	41.275 (1 5/8)	65.088 (2 9/16)	31.750 (1 1/4)	32	50.800 ( 2 )	0.5	48	49	57.8	1.5	63200	118000	8000	LRB-263220
44.450 (1 3/4)	BRI 284824	735	44.450 (1 3/4)	76.200 ( 3 )	38.100 (1 1/2)	38.35	57.150 (2 1/4)	1	52.5	55	69	1.5	90300	158000	7000	LRB-283624
44.450 (1 3/4)	BRI 284828	855	44.450 (1 3/4)	76.200 ( 3 )	44.450 (1 3/4)	44.7	57.150 (2 1/4)	1	52.5	55	69	1.5	105000	191000	7000	LRB-283628
50.800 ( 2 )	BRI 325224	810	50.800 ( 2 )	82.550 (3 1/4)	38.100 (1 1/2)	38.35	63.500 (2 1/2)	1	58	61	74.3	2	94600	174000	6500	LRB-324024
50.800 ( 2 )	BRI 325228	945	50.800 ( 2 )	82.550 (3 1/4)	44.450 (1 3/4)	44.7	63.500 (2 1/2)	1	58	61	74.3	2	110000	210000	6500	LRB-324028
57.150 (2 1/4)	BRI 365624	885	57.150 (2 1/4)	88.900 (3 1/2)	38.100 (1 1/2)	38.35	69.850 (2 3/4)	1	65	67	80.7	2	98700	189000	5500	LRB-364424
57.150 (2 1/4)	BRI 365628	1040	57.150 (2 1/4)	88.900 (3 1/2)	44.450 (1 3/4)	44.7	69.850 (2 3/4)	1	65	67	80.7	2	114000	228000	5500	LRB-364428
63.500 (2 1/2)	BRI 406024	965	63.500 (2 1/2)	95.250 (3 3/4)	38.100 (1 1/2)	38.35	76.200 ( 3 )	1	71	73	87	2	105000	211000	5500	LRB-404824
63.500 (2 1/2)	BRI 406028	1130	63.500 (2 1/2)	95.250 (3 3/4)	44.450 (1 3/4)	44.7	76.200 ( 3 )	1	71	73	87	2	122000	255000	5500	LRB-404828
69.850 (2 3/4)	BRI 446828	1520	69.850 (2 3/4)	107.950 (4 1/4)	44.450 (1 3/4)	44.7	82.550 (3 1/4)	1.5	77	79	99.7	2	141000	259000	5000	LRB-445228
69.850 (2 3/4)	BRI 446832	1740	69.850 (2 3/4)	107.950 (4 1/4)	50.800 ( 2 )	51.05	82.550 (3 1/4)	3	77	79	99.7	2	154000	290000	5000	LRB-445232
76.200 ( 3 )	BRI 487232	1860	76.200 ( 3 )	114.300 (4 1/2)	50.800 ( 2 )	51.05	88.900 (3 1/2)	3	83.5	86	106.1	2	162000	316000	4500	LRB-485632
82.550 (3 1/4)	BRI 527632	1980	82.550 (3 1/4)	120.650 (4 3/4)	50.800 ( 2 )	51.05	95.250 (3 3/4)	3	91	93	111.4	2.5	169000	342000	4000	LRB-526032
88.900 (3 1/2)	BRI 568032	2120	88.900 (3 1/2)	127.000 ( 5 )	50.800 ( 2 )	51.05	101.600 ( 4 )	3	97	99	117.8	2.5	176000	368000	4000	LRB-566432

車削型針狀軸承密封型、無內圈

RNA49…UU

RNA49…U

RNA69…UU

RNA69…U

軸徑 m/m	公稱型號				重量 g	主要尺寸 (m/m)				安裝尺寸 Da 最大 m/m	基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
軸徑 m/m	兩側密封型	單側密封型	兩側密封型	單側密封型	重量 g	Fw	D	C	r	安裝尺寸 Da 最大 m/m	基本額定動負荷 C (N)	基本額定靜負荷 C₀ (N)	容許轉速 RPM
14	RNA 4900UU	RNA 4900 U	-	-	16.3	14	22	13	0.3	20	8080	8490	14000
16	RNA 4901UU	RNA 4901 U	-	-	17.9	16	24	13	0.3	22	8470	9320	12000
16	-	-	RNA 6901 UU	RNA 6901 U	30	16	24	22	0.3	22	15500	20400	12000
18	RNA 49/14UU	RNA 49/14 U	-	-	19.7	18	26	13	0.3	24	9260	10800	11000
20	RNA 4902UU	RNA 4902 U	-	-	21.5	20	28	13	0.3	26	9570	11600	9500
20	-	-	RNA 6902 UU	RNA 6902 U	37.5	20	28	23	0.3	26	18500	27100	9500
22	RNA 4903UU	RNA 4903 U	-	-	23	22	30	13	0.3	28	10300	13100	8500
22	-	-	RNA 6903 UU	RNA 6903 U	40.5	22	30	23	0.3	28	19800	30600	8500
25	RNA 4904UU	RNA 4904 U	-	-	54.5	25	37	17	0.3	35	18000	20500	7500
25	-	-	RNA 6904 UU	RNA 6904 U	95.5	25	37	30	0.3	35	33000	44600	7500
28	RNA 49/22UU	RNA 49/22 U	-	-	55.5	28	39	17	0.3	37	18300	23700	7000
28	-	-	RNA 69/22 UU	RNA 69/22 U	97.5	28	39	30	0.3	37	33800	52000	7000
30	RNA 4905UU	RNA 4905 U	-	-	63	30	42	17	0.3	40	20300	25100	6500
30	-	-	RNA 6905 UU	RNA 6905 U	111	30	42	30	0.3	40	39200	58700	6500
32	RNA 49/28UU	RNA 49/28 U	-	-	75.5	32	45	17	0.3	43	21000	26800	6000
32	-	-	RNA 69/28 UU	RNA 69/28 U	133	32	45	30	0.3	43	38900	59100	6000
35	RNA 4906UU	RNA 4906 U	-	-	71	35	47	17	0.3	45	21500	28400	5500
35	-	-	RNA 6906 UU	RNA 6906 U	125	35	47	30	0.3	45	40100	63000	5500
40	RNA 49/32UU	RNA 49/32 U	-	-	94.5	40	52	20	0.6	48	29400	44200	5000
40	-	-	RNA 69/32 UU	RNA 69/32 U	170	40	52	36	0.6	48	50300	88300	5000
42	RNA 4907UU	RNA 4907 U	-	-	112	42	55	20	0.6	51	30100	46300	4500
42	-	-	RNA 6907 UU	RNA 6907 U	200	42	55	36	0.6	51	51600	92600	4500
45	RNA 49/38UU	RNA 49/38 U	-	-	119	45	58	20	0.6	54	31600	50400	4000
48	RNA 4908UU	RNA 4908 U	-	-	150	48	62	22	0.6	58	37200	58400	4000
48	-	-	RNA 6908 UU	RNA 6908 U	270	48	62	40	0.6	58	63700	117000	4000
50	RNA 49/42UU	RNA 49/42 U	-	-	173	50	65	22	0.6	61	38000	60900	4000
52	RNA 4909UU	RNA 4909 U	-	-	197	52	68	22	0.6	64	38900	63400	3500
52	-	-	RNA 6909 UU	RNA 6909 U	355	52	68	40	0.6	64	66600	127000	3500
55	RNA 49/48UU	RNA 49/48 U	-	-	187	55	70	22	0.6	66	39600	66100	3500
58	RNA 4910UU	RNA 4910 U	-	-	177	58	72	22	0.6	68	41300	71100	3500
58	-	-	RNA 6910 UU	RNA 6910 U	320	58	72	40	0.6	68	70800	142000	3500
60	RNA 49/52UU	RNA 49/52 U	-	-	200	60	75	22	0.6	71	42100	73600	3000
63	RNA 4911UU	RNA 4911 U	-	-	265	63	80	25	1	75	52200	85700	3000
63	-	-	RNA 6911 UU	RNA 6911 U	470	63	80	45	1	75	89400	171000	3000
65	RNA 49/58UU	RNA 49/58 U	-	-	275	65	82	25	1	77	53400	89200	3000
68	RNA 4912UU	RNA 4912 U	-	-	285	68	85	25	1	80	54500	92800	3000
68	-	-	RNA 6912 UU	RNA 6912 U	505	68	85	45	1	80	93400	186000	3000
70	RNA 49/62UU	RNA 49/62 U	-	-	320	70	88	25	1	83	55700	96300	2500
72	RNA 4913UU	RNA 4913 U	-	-	325	72	90	25	1	85	56800	99800	2500
72	-	-	RNA 6913 UU	RNA 6913 U	580	72	90	45	1	85	97400	200000	2500
75	RNA 49/68UU	RNA 49/68 U	-	-	465	75	95	30	1	90	73900	133000	2500
80	RNA 4914UU	RNA 4914 U	-	-	495	80	100	30	1	95	76900	143000	2500
80	-	-	RNA 6914 UU	RNA 6914 U	910	80	100	54	1	95	124000	281000	2500
85	RNA 4915UU	RNA 4915 U	-	-	520	85	105	30	1	100	79600	153000	2000
85	-	-	RNA 6915 UU	RNA 6915 U	960	85	105	54	1	100	128000	299000	2000
90	RNA 4916UU	RNA 4916 U	-	-	545	90	110	30	1	105	80700	158000	2000
90	-	-	RNA 6916 UU	RNA 6916 U	1010	90	110	54	1	105	132000	317000	2000
95	RNA 49/82UU	RNA 49/82 U	-	-	570	95	115	30	1	110	83200	168000	2000
100	RNA 4917UU	RNA 4917 U	-	-	695	100	120	35	1.1	113.5	103000	225000	1900
100	-	-	RNA 6917 UU	RNA 6917 U	1300	100	120	63	1.1	113.5	168000	448000	1900
105	RNA 4918UU	RNA 4918 U	-	-	730	105	125	35	1.1	118.5	106000	238000	1800
105	-	-	RNA 6918 UU	RNA 6918 U	1360	105	125	63	1.1	118.5	172000	471000	1800
110	RNA 4919UU	RNA 4919 U	-	-	760	110	130	35	1.1	123.5	109000	250000	1700
110	-	-	RNA 6919 UU	RNA 6919 U	1420	110	130	63	1.1	123.5	177000	493000	1700
115	RNA 4920UU	RNA 4920 U	-	-	1200	115	140	40	1.1	133.5	134000	297000	1700
125	RNA 4922UU	RNA 4922 U	-	-	1280	125	150	40	1.1	143.5	140000	322000	1500
135	RNA 4924UU	RNA 4924 U	-	-	1940	135	165	45	1.1	158.5	178000	410000	1400
150	RNA 4926UU	RNA 4926 U	-	-	2360	150	180	50	1.5	172	206000	511000	1300
160	RNA 4928UU	RNA 4928 U	-	-	2510	160	190	50	1.5	182	214000	549000	1200

備註：外圈上設有油槽並設一個油孔。兩側密封型已封入潤滑脂。單側密封型未封入潤滑脂，請適當潤滑後使用。

車削型針狀軸承密封型、附帶內圈

NA49…UU,NA69…UU

NA49…U,NA69…U

NA69…UU

NA69…U

軸徑 m/m	公稱型號				重量 g	主要尺寸 (m/m)						安裝尺寸			基本額定		容許轉速 RPM	搭配的內圈
	公稱型號					主要尺寸 (m/m)						安裝尺寸			動負荷	靜負荷
	兩側密封型	單側密封型	兩側密封型	單側密封型		d	D	C	B	r	Fw	da		Da	C (N)	C₀ (N)
	兩側密封型	單側密封型	兩側密封型	單側密封型		d	D	C	B	r	Fw	最小	最大	最大	C (N)	C₀ (N)
10	NA 4900 UU	NA 4900 U	-	-	24.5	10	22	13	14	0.3	14	12	13	20	8080	8490	14000	LRTZ-101414
12	NA 4901 UU	NA 4901 U	-	-	27.5	12	24	13	14	0.3	16	14	15	22	8470	9320	12000	LRTZ- 121614
12	-	-	NA 6901 UU	NA 6901 U	45.5	12	24	22	23	0.3	16	14	15	22	15500	20400	12000	LRTZ- 121623
15	NA 4902 UU	NA 4902 U	-	-	36	15	28	13	14	0.3	20	17	19	26	9570	11600	9500	LRTZ- 152014
15	-	-	NA 6902 UU	NA 6902 U	62.5	15	28	23	24	0.3	20	17	19	26	18500	27100	9500	LRTZ- 152024
17	NA 4903 UU	NA 4903 U	-	-	39.5	17	30	13	14	0.3	22	19	21	28	10300	13100	8500	LRTZ- 172214
17	-	-	NA 6903 UU	NA 6903 U	68.5	17	30	23	24	0.3	22	19	21	28	19800	30600	8500	LRTZ- 172224
20	NA 4904 UU	NA 4904 U	-	-	78.5	20	37	17	18	0.3	25	22	24	35	18000	20500	7500	LRTZ- 202518
20	-	-	NA 6904 UU	NA 6904 U	137	20	37	30	31	0.3	25	22	24	35	33000	44600	7500	LRTZ- 202531
22	NA 49/22 UU	NA 49/22 U	-	-	87.5	22	39	17	18	0.3	28	24	27	37	18300	23700	7000	LRTZ- 222818
22	-	-	NA 69/22 UU	NA 69/22 U	153	22	39	30	31	0.3	28	24	27	37	33800	52000	7000	LRTZ- 222831
25	NA 4905 UU	NA 4905 U	-	-	92.5	25	42	17	18	0.3	30	27	29	40	20300	25100	6500	LRTZ- 253018
25	-	-	NA 6905 UU	NA 6905 U	162	25	42	30	31	0.3	30	27	29	40	39200	58700	6500	LRTZ- 253031
28	NA 49/28 UU	NA 49/28 U	-	-	101	28	45	17	18	0.3	32	30	31	43	21000	26800	6000	LRTZ- 283218
28	-	-	NA 69/28 UU	NA 69/28 U	177	28	45	30	31	0.3	32	30	31	43	38900	59100	6000	LRTZ- 283231
30	NA 4906 UU	NA 4906 U	-	-	106	30	47	17	18	0.3	35	32	34	45	21500	28400	5500	LRTZ- 303518
30	-	-	NA 6906 UU	NA 6906 U	185	30	47	30	31	0.3	35	32	34	45	40100	63000	5500	LRTZ- 303531
32	NA 49/32 UU	NA 49/32 U	-	-	167	32	52	20	21	0.6	40	36	39	48	29400	44200	5000	LRTZ- 324021
32	-	-	NA 69/32 UU	NA 69/32 U	300	32	52	36	37	0.6	40	36	39	48	50300	88300	5000	LRTZ- 324037
35	NA 4907 UU	NA 4907 U	-	-	179	35	55	20	21	0.6	42	39	41	51	30100	46300	4500	LRTZ- 354221
35	-	-	NA 6907 UU	NA 6907 U	320	35	55	36	37	0.6	42	39	41	51	51600	92600	4500	LRTZ- 354237
40	NA 4908 UU	NA 4908 U	-	-	245	40	62	22	23	0.6	48	44	47	58	37200	58400	4000	LRTZ- 404823
40	-	-	NA 6908 UU	NA 6908 U	440	40	62	40	41	0.6	48	44	47	58	63700	117000	4000	LRTZ- 404841
45	NA 4909 UU	NA 4909 U	-	-	290	45	68	22	23	0.6	52	49	51	64	38900	63400	3500	LRTZ-455223
45	-	-	NA 6909 UU	NA 6909 U	520	45	68	40	41	0.6	52	49	51	64	66600	127000	3500	LRTZ-455241
50	NA 4910 UU	NA 4910 U	-	-	295	50	72	22	23	0.6	58	54	57	68	41300	71100	3500	LRTZ-505823
50	-	-	NA 6910 UU	NA 6910 U	530	50	72	40	41	0.6	58	54	57	68	70800	142000	3500	LRTZ-505841
55	NA 4911 UU	NA 4911 U	-	-	415	55	80	25	26	1	63	60	61	75	52200	85700	3000	LRTZ-556326
55	-	-	NA 6911 UU	NA 6911 U	730	55	80	45	46	1	63	60	61	75	89400	171000	3000	LRTZ-556346
60	NA 4912 UU	NA 4912 U	-	-	445	60	85	25	26	1	68	65	66	80	54500	92800	3000	LRTZ-606826
60	-	-	NA 6912 UU	NA 6912 U	785	60	85	45	46	1	68	65	66	80	93400	186000	3000	LRTZ-606846
65	NA 4913 UU	NA 4913 U	-	-	475	65	90	25	26	1	72	70	70.5	85	56800	99800	2500	LRTZ-657226
65	-	-	NA 6913 UU	NA 6913 U	845	65	90	45	46	1	72	70	70.5	85	97400	200000	2500	LRTZ-657246
70	NA 4914 UU	NA 4914 U	-	-	770	70	100	30	31	1	80	75	78	95	76900	143000	2500	LRTZ-708031
70	-	-	NA 6914 UU	NA 6914 U	1400	70	100	54	55	1	80	75	78	95	124000	281000	2500	LRTZ-708055
75	NA 4915 UU	NA 4915 U	-	-	815	75	105	30	31	1	85	80	83	100	79600	153000	2000	LRTZ-758531
75	-	-	NA 6915 UU	NA 6915 U	1480	75	105	54	55	1	85	80	83	100	128000	299000	2000	LRTZ-758555
80	NA 4916 UU	NA 4916 U	-	-	860	80	110	30	31	1	90	85	88	105	80700	158000	2000	LRTZ-809031
80	-	-	NA 6916 UU	NA 6916 U	1570	80	110	54	55	1	90	85	88	105	132000	317000	2000	LRTZ-809055
85	NA 4917 UU	NA 4917 U	-	-	1300	85	120	35	36	1.1	100	91.5	98	113.5	103000	225000	1900	LRTZ-8510036
85	-	-	NA 6917 UU	NA 6917 U	2360	85	120	63	64	1.1	100	91.5	98	113.5	168000	448000	1900	LRTZ-8510064
90	NA 4918 UU	NA 4918 U	-	-	1360	90	125	35	36	1.1	105	96.5	103	118.5	106000	238000	1800	LRTZ-9010536
90	-	-	NA 6918 UU	NA 6918 U	2480	90	125	63	64	1.1	105	96.5	103	118.5	172000	471000	1800	LRTZ-9010564
95	NA 4919 UU	NA 4919 U	-	-	1420	95	130	35	36	1.1	110	101.5	108	123.5	109000	250000	1700	LRTZ-9511036
95	-	-	NA 6919 UU	NA 6919 U	2600	95	130	63	64	1.1	110	101.5	108	123.5	177000	493000	1700	LRTZ-9511064
100	NA 4920 UU	NA 4920 U	-	-	1980	100	140	40	41	1.1	115	106.5	113	133.5	134000	297000	1700	LRTZ-10011541
110	NA 4922 UU	NA 4922 U	-	-	2150	110	150	40	41	1.1	125	116.5	123	143.5	140000	322000	1500	LRTZ-11012541
120	NA 4924 UU	NA 4924 U	-	-	2990	120	165	45	46	1.1	135	126.5	133	158.5	178000	410000	1400	LRTZ-12013546
130	NA 4926 UU	NA 4926 U	-	-	4080	130	180	50	51	1.5	150	138	148	172	206000	511000	1300	LRTZ-13015051
140	NA 4928 UU	NA 4928 U	-	-	4340	140	190	50	51	1.5	160	148	158	182	214000	549000	1200	LRTZ-14016051

備註：外圈上設有油槽並設一個油孔。兩側密封型已封入潤滑脂。單側密封型未封入潤滑脂，請適當潤滑後使用。

車削型針狀軸承密封型、無內圈(英制)

BR…UU

軸徑 m/m (inch)	公稱型號		重量 g	主要尺寸 m/m (inch)			安裝尺寸		基本額定		容許轉速 RPM
	公稱型號			主要尺寸 m/m (inch)			安裝尺寸		動負荷	靜負荷
	兩側密封型	單側密封型		Fw	D	C	Da	r	C (N)	C₀ (N)
15.875 (5/8)	BR 101816 UU	BR 101816 U	54	15.875 (5/8)	28.575 (1 1/8)	25.400 ( 1 )	24.5	0.6	18300	20000	12000
19.050 (3/4)	BR 122016 UU	BR 122016 U	68	19.050 (3/4)	31.750 (1 1/4)	25.400 ( 1 )	26.5	1	20700	24400	10000
22.225 (7/8)	BR 142216 UU	BR 142216 U	76	22.225 (7/8)	34.925 (1 3/8)	25.400 ( 1 )	29.7	1	21600	26900	9000
25.400 ( 1 )	BR 162416 UU	BR 162416 U	83	25.400 ( 1 )	38.100 (1 1/2)	25.400 ( 1 )	32.9	1	23600	31300	8000
28.575 (1 1/8)	BR 182620 UU	BR 182620 U	115	28.575 (1 1/8)	41.275 (1 5/8)	31.750 (1 1/4)	36	1	34900	49900	7000
31.750 (1 1/4)	BR 202820 UU	BR 202820 U	124	31.750 (1 1/4)	44.450 (1 3/4)	31.750 (1 1/4)	39.2	1	36000	53500	6500
34.925 (1 3/8)	BR 223020 UU	BR 223020 U	134	34.925 (1 3/8)	47.625 (1 7/8)	31.750 (1 1/4)	42.4	1	38500	60000	5500
38.100 (1 1/2)	BR 243320 UU	BR 243320 U	168	38.100 (1 1/2)	52.388 (2 1/16)	31.750 (1 1/4)	45.1	1.5	43700	66900	5500
41.275 (1 5/8)	BR 263520 UU	BR 263520 U	179	41.275 (1 5/8)	55.562 (2 3/16)	31.750 (1 1/4)	48.3	1.5	44800	70900	4500
44.450 (1 3/4)	BR 283720 UU	BR 283720 U	193	44.450 (1 3/4)	58.738 (2 5/16)	31.750 (1 1/4)	51.5	1.5	47500	78200	4500
47.625 (1 7/8)	BR 303920 UU	BR 303920 U	202	47.625 (1 7/8)	61.912 (2 7/16)	31.750 (1 1/4)	54.7	1.5	48500	82100	4000
50.800 ( 2 )	BR 324120 UU	BR 324120 U	216	50.800 ( 2 )	65.088 (2 9/16)	31.750 (1 1/4)	57.8	1.5	51000	89400	4000
57.150 (2 1/4)	BR 364828 UU	BR 364828 U	459	57.150 (2 1/4)	76.200 ( 3 )	44.450 (1 3/4)	69	1.5	90300	158000	3500
63.500 (2 1/2)	BR 405228 UU	BR 405228 U	499	63.500 (2 1/2)	82.550 (3 1/4)	44.450 (1 3/4)	74.3	2	94600	174000	3000
69.850 (2 3/4)	BR 445628 UU	BR 445628 U	540	69.850 (2 3/4)	88.900 (3 1/2)	44.450 (1 3/4)	80.7	2	98700	189000	2500
76.200 ( 3 )	BR 486028 UU	BR 486028 U	585	76.200 ( 3 )	95.250 (3 3/4)	44.450 (1 3/4)	87	2	105000	211000	2500
82.550 (3 1/4)	BR 526828 UU	BR 526828 U	891	82.550 (3 1/4)	107.950 (4 1/4)	44.450 (1 3/4)	99.7	2	109000	227000	2500
88.900 (3 1/2)	BR 567232 UU	BR 567232 U	1098	88.900 (3 1/2)	114.300 (4 1/2)	50.800 ( 2 )	106.1	2	142000	265000	2000
95.250 (3 3/4)	BR 607632 UU	BR 607632 U	1161	95.250 (3 3/4)	120.650 (4 3/4)	50.800 ( 2 )	111.4	2.5	148000	287000	2000

車削型針狀軸承密封型、附帶內圈(英制)

BRI…UU

軸徑 m/m (inch)	公稱型號		重量 g	主要尺寸 m/m (inch)					基本額定		容許轉速 RPM	搭配的內圈
	公稱型號			主要尺寸 m/m (inch)					動負荷	靜負荷
	兩側密封型	單側密封型		D	d	C	B	Fw	C (N)	C₀ (N)
9.525 (3/8)	BRI 61816 UU	BRI 61816 U	79	9.525 (3/8)	28.575 (1 1/8)	25.400 ( 1 )	25.65	15.875 (5/8)	18300	20000	12000	LRBZ-61016B
12.700 (1/2)	BRI 82016 UU	BRI 82016 U	99	12.700 (1/2)	31.750 (1 1/4)	25.400 ( 1 )	25.65	19.050 (3/4)	20700	24400	10000	LRBZ-81216 B
15.875 (5/8)	BRI 102216 UU	BRI 102216 U	113.5	15.875 (5/8)	34.925 (1 3/8)	25.400 ( 1 )	25.65	22.225 (7/8)	21600	26900	9000	LRBZ-101416 B
19.050 (3/4)	BRI 122416 UU	BRI 122416 U	127	19.050 (3/4)	38.100 (1 1/2)	25.400 ( 1 )	25.65	25.400 ( 1 )	23600	31300	8000	LRBZ-121616 B
22.225 (7/8)	BRI 142620 UU	BRI 142620 U	177	22.225 (7/8)	41.275 (1 5/8)	31.750 (1 1/4)	32	28.575 (1 1/8)	34900	49900	7000	LRBZ-141820 B
25.400 ( 1 )	BRI 162820 UU	BRI 162820 U	196	25.400 ( 1 )	44.450 (1 3/4)	31.750 (1 1/4)	32	31.750 (1 1/4)	36000	53500	6500	LRBZ-162020 B
28.575 (1 1/8)	BRI 183020 UU	BRI 183020 U	211	28.575 (1 1/8)	47.625 (1 7/8)	31.750 (1 1/4)	32	34.925 (1 3/8)	38500	60000	5500	LRBZ-182220 B
31.750 (1 1/4)	BRI 203320 UU	BRI 203320 U	254	31.750 (1 1/4)	52.388 (2 1/16)	31.750 (1 1/4)	32	38.100 (1 1/2)	43700	66900	5500	LRBZ-202420 B
34.925 (1 3/8)	BRI 223520 UU	BRI 223520 U	275	34.925 (1 3/8)	55.562 (2 3/16)	31.750 (1 1/4)	32	41.275 (1 5/8)	44800	70900	4500	LRBZ-222620 B
38.100 (1 1/2)	BRI 243720 UU	BRI 243720 U	293	38.100 (1 1/2)	58.738 (2 5/16)	31.750 (1 1/4)	32	44.450 (1 3/4)	47500	78200	4500	LRBZ-242820 B
38.100 (1 1/2)	BRI 243920 UU	BRI 243920 U	362	38.100 (1 1/2)	61.912 (2 7/16)	31.750 (1 1/4)	32	47.625 (1 7/8)	48500	82100	4000	LRBZ-243020 B
41.275 (1 5/8)	BRI 264120 UU	BRI 264120 U	386	41.275 (1 5/8)	65.088 (2 9/16)	31.750 (1 1/4)	32	50.800 ( 2 )	51000	89400	4000	LRBZ-263220 B
44.450 (1 3/4)	BRI 284828 UU	BRI 284828 U	804	44.450 (1 3/4)	76.200 ( 3 )	44.450 (1 3/4)	44.7	57.150 (2 1/4)	90300	158000	3500	LRBZ-283628 B
50.800 ( 2 )	BRI 325228 UU	BRI 325228 U	889	50.800 ( 2 )	82.550 (3 1/4)	44.450 (1 3/4)	44.7	63.500 (2 1/2)	94600	174000	3000	LRBZ-324028 B
57.150 (2 1/4)	BRI 365628 UU	BRI 365628 U	980	57.150 (2 1/4)	88.900 (3 1/2)	44.450 (1 3/4)	44.7	69.850 (2 3/4)	98700	189000	2500	LRBZ-364428 B
63.500 (2 1/2)	BRI 406028 UU	BRI 406028 U	1065	63.500 (2 1/2)	95.250 (3 3/4)	44.450 (1 3/4)	44.7	76.200 ( 3 )	105000	211000	2500	LRBZ-404828 B
69.850 (2 3/4)	BRI 446828 UU	BRI 446828 U	1421	69.850 (2 3/4)	107.950 (4 1/4)	44.450 (1 3/4)	44.7	82.550 (3 1/4)	109000	227000	2500	LRBZ-445228 B
76.200 ( 3 )	BRI 487232 UU	BRI 487232 U	1738	76.200 ( 3 )	114.300 (4 1/2)	50.800 ( 2 )	51.05	88.900 (3 1/2)	142000	265000	2000	LRBZ-485632 B
82.550 (3 1/4)	BRI 527632 UU	BRI 527632 U	1851	82.550 (3 1/4)	120.650 (4 3/4)	50.800 ( 2 )	51.05	95.250 (3 3/4)	148000	287000	2000	LRBZ-526032 B

車削型針狀軸承型錄下載

車削型針狀軸承、付內輪

車削型滾針軸承的結構

車削型針狀軸承 無內圈

車削型針狀軸承 附帶內圈

車削型針狀軸承 無內圈(英制)

車削型針狀軸承 附帶內圈(英制)

車削型針狀軸承 密封型、無內圈

車削型針狀軸承 密封型、附帶內圈

車削型針狀軸承 密封型、無內圈(英制)

車削型針狀軸承 密封型、附帶內圈(英制)
